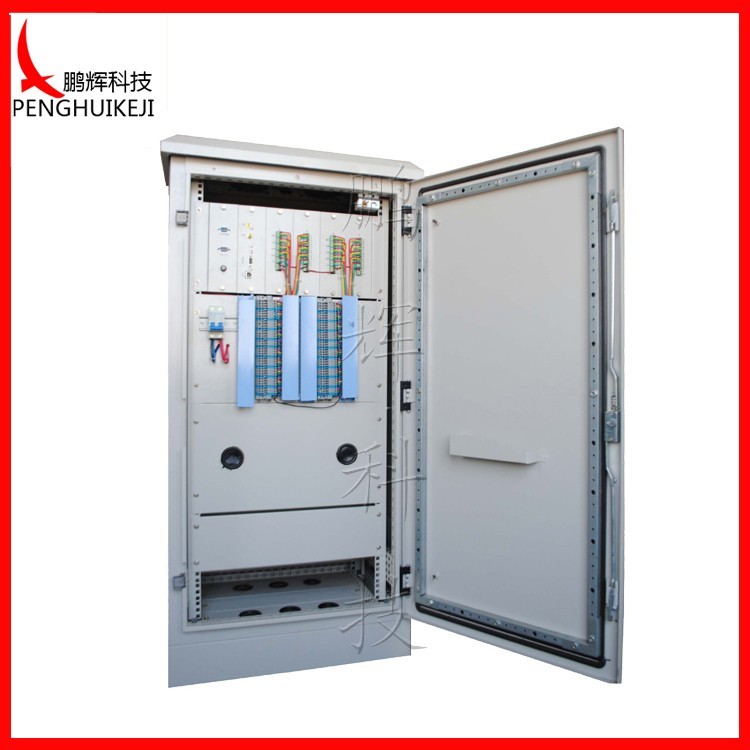

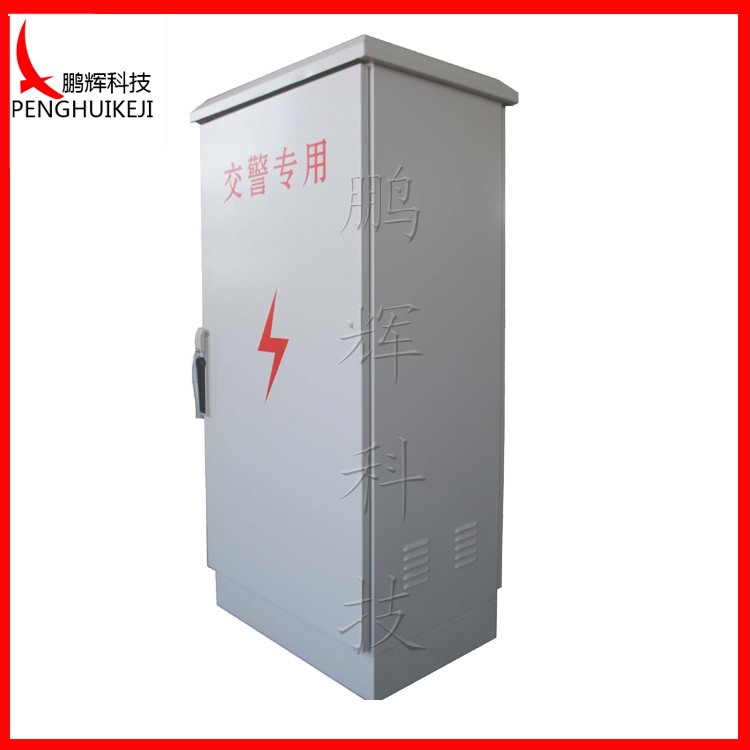

Coordinated network signal

Signal function characteristics:

1.In order toMotorola32A high performance microcontroller as the core.

2.Modular design, easy to install and maintain.

3.Using solid state switch control signals, running stability.

4.The yellow ShanQi as independent units safe operation.

5.With the help of reliable microprocessor, toroidal coil detector system.

6.Through flexible, convenient communication interface to connect control center can be coordinated control system.

7.A variety of communication interface:RS-232/485。

8.The power input has a power surge and lightning prevention measures.

9.Leakage protection function.

10.Signal embedded software running environment using real-time multitasking operating system, guarantee system is stable and reliable.

11.The detector, the working state of the peripheral equipment such as communication, lamps and lanterns automatic monitoring and recording, malfunction alarm automatically and can automatically take corresponding measures.

12.With perfect light color green conflict monitoring.

13.Can be usedGPSEnsure the accuracy of system clock timing.

14.Comprehensive fault diagnosis function makes the fault location is relatively easy.

15.Generate feature parameters and being easy to download, availablePCMachine (laptop) orPDATo complete.

16.Acquisition function: the function of the traffic flow information collection and processing;

17.Storage: storage function of traffic information such as;

signalI/Oindicators:

1) drive8Piece of phase plate,32A phase drive,96A lamp control terminal

2） 32A motor vehicle detector (coil detector)

3） 8Road pedestrian button

4） 8Road bike detector

5Reserved)6A switch quantity input interface,7A switch output interface

6） 8Road relay output

Electrical signal indicator:

1)Power supply:AC220V±44V，50Hz±2Hz

2)Drive power:800W

3)The machine power consumption:50W

4)Insulation resistance is greater than the10 m.

5)pressure

6) Electromagnetic immunity
